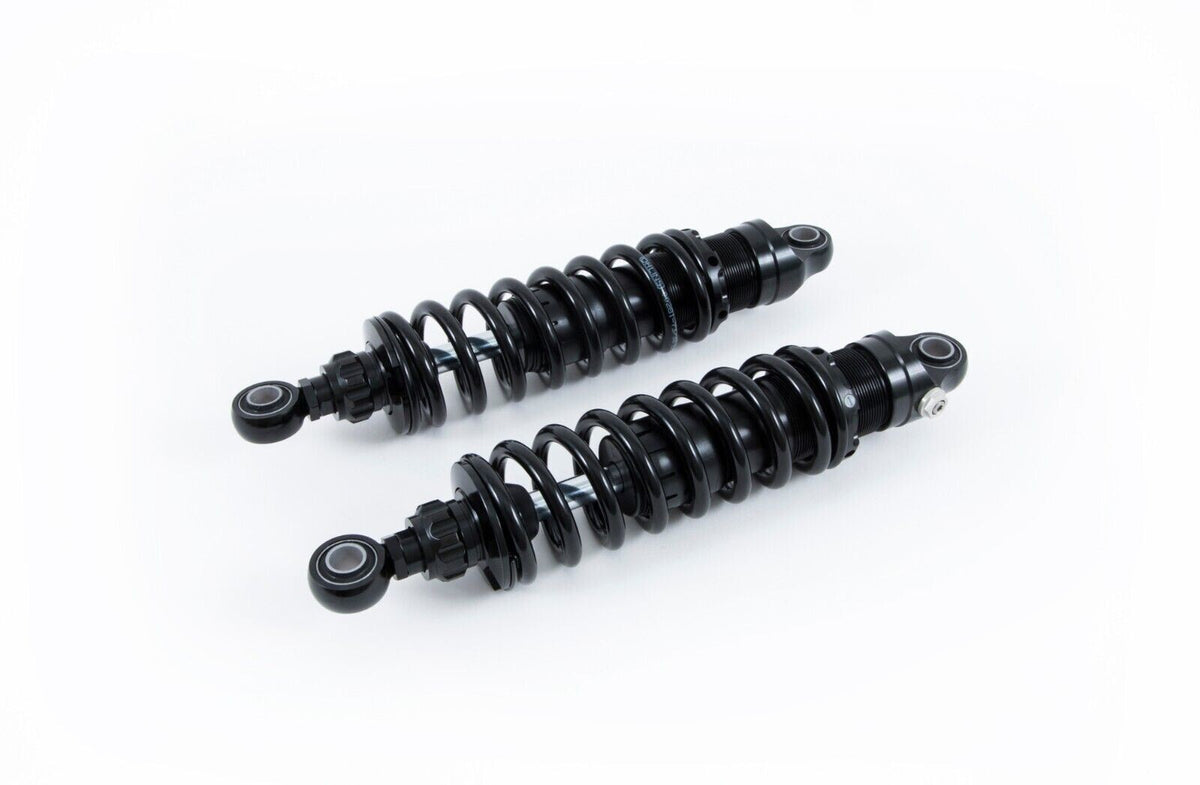

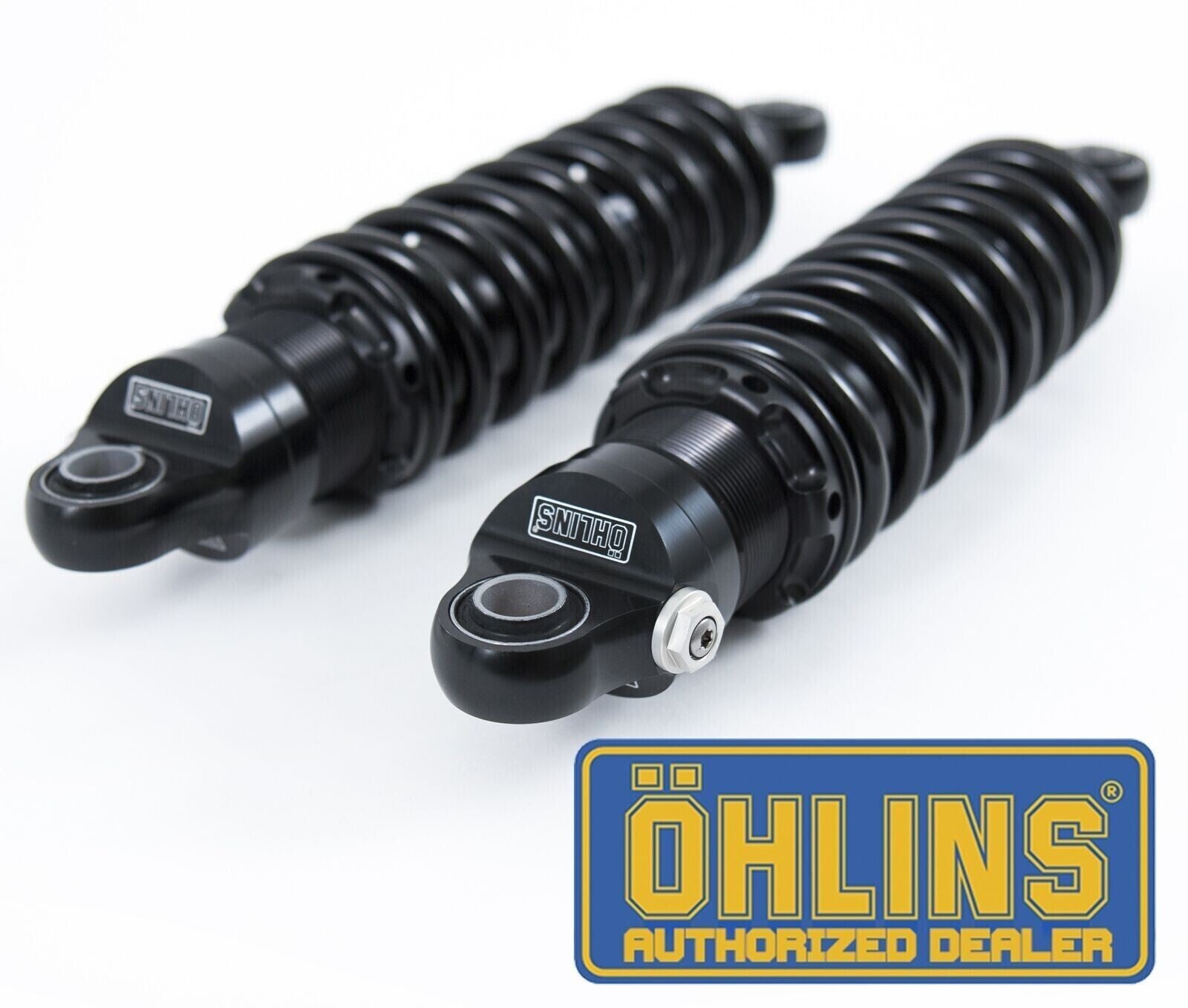

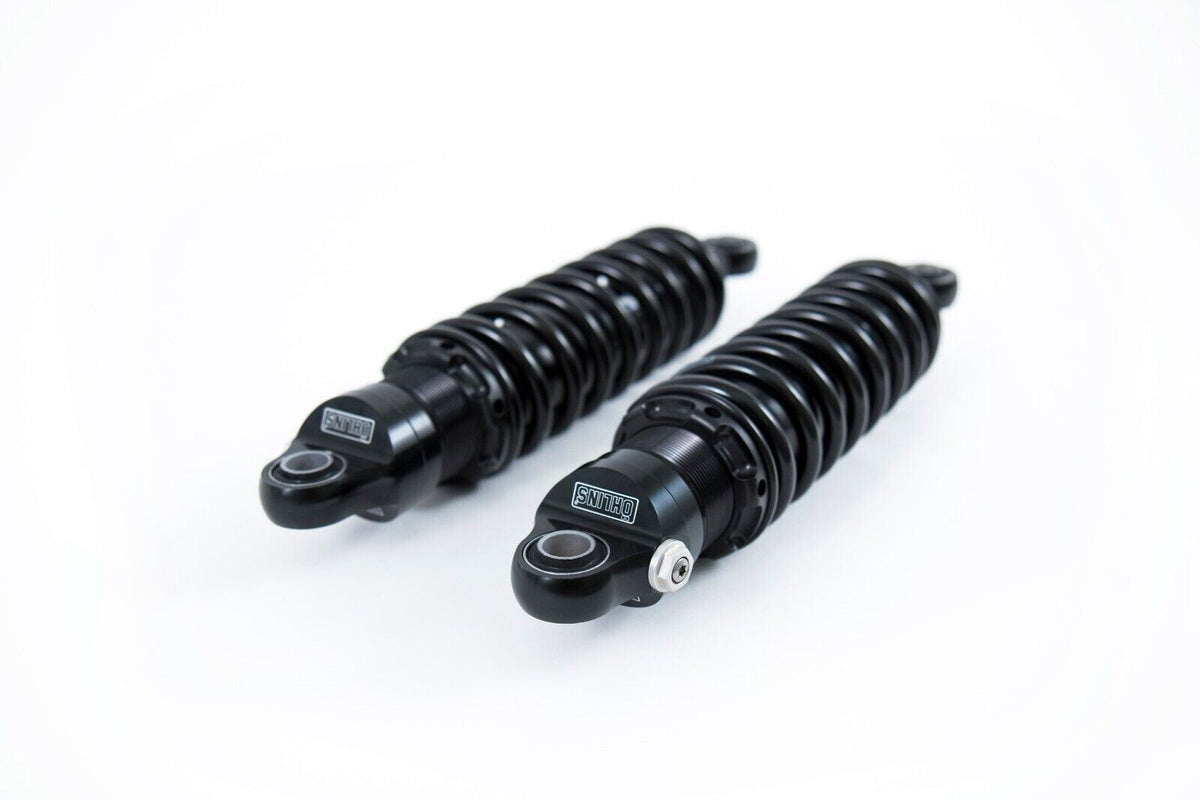

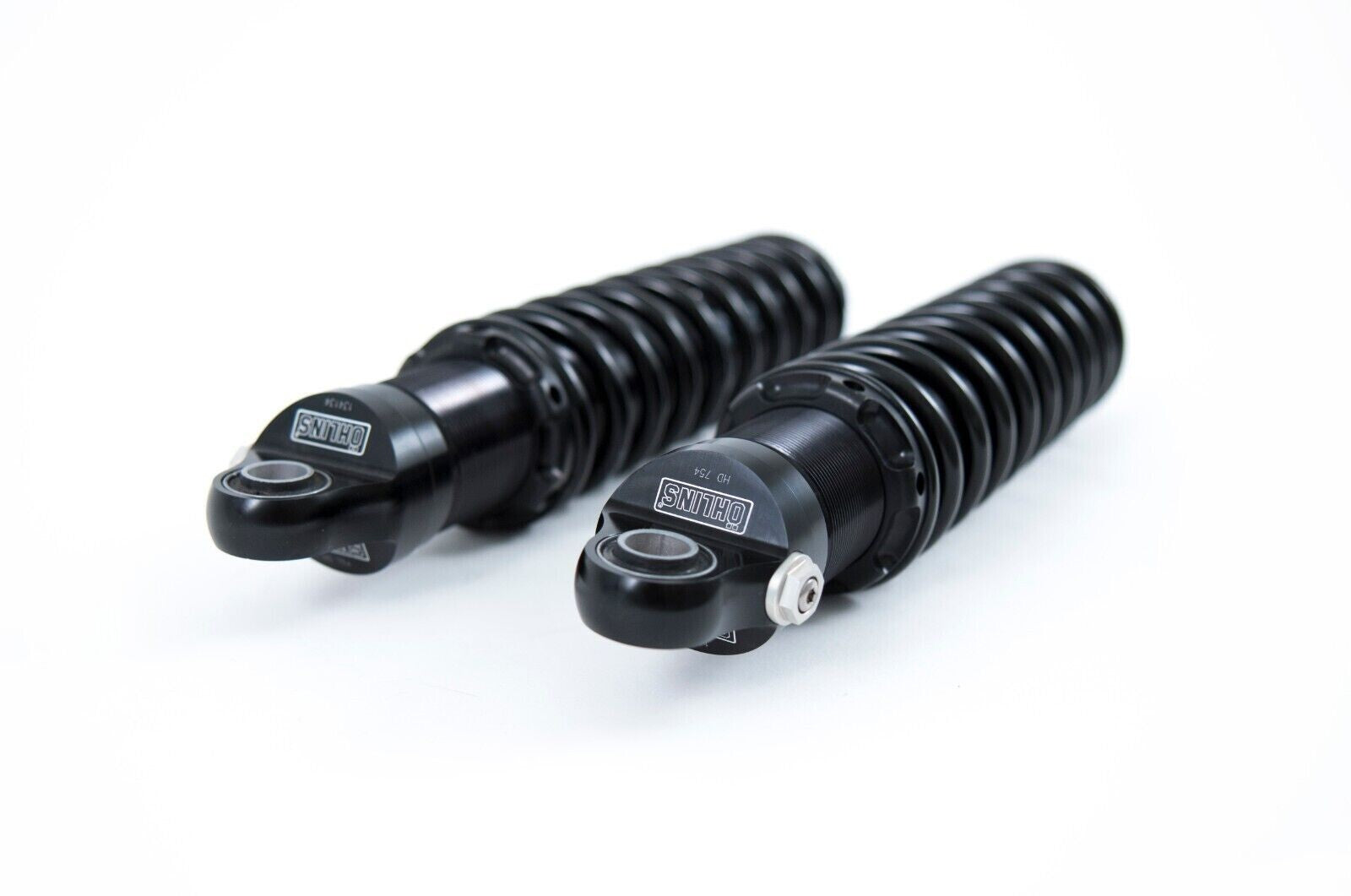

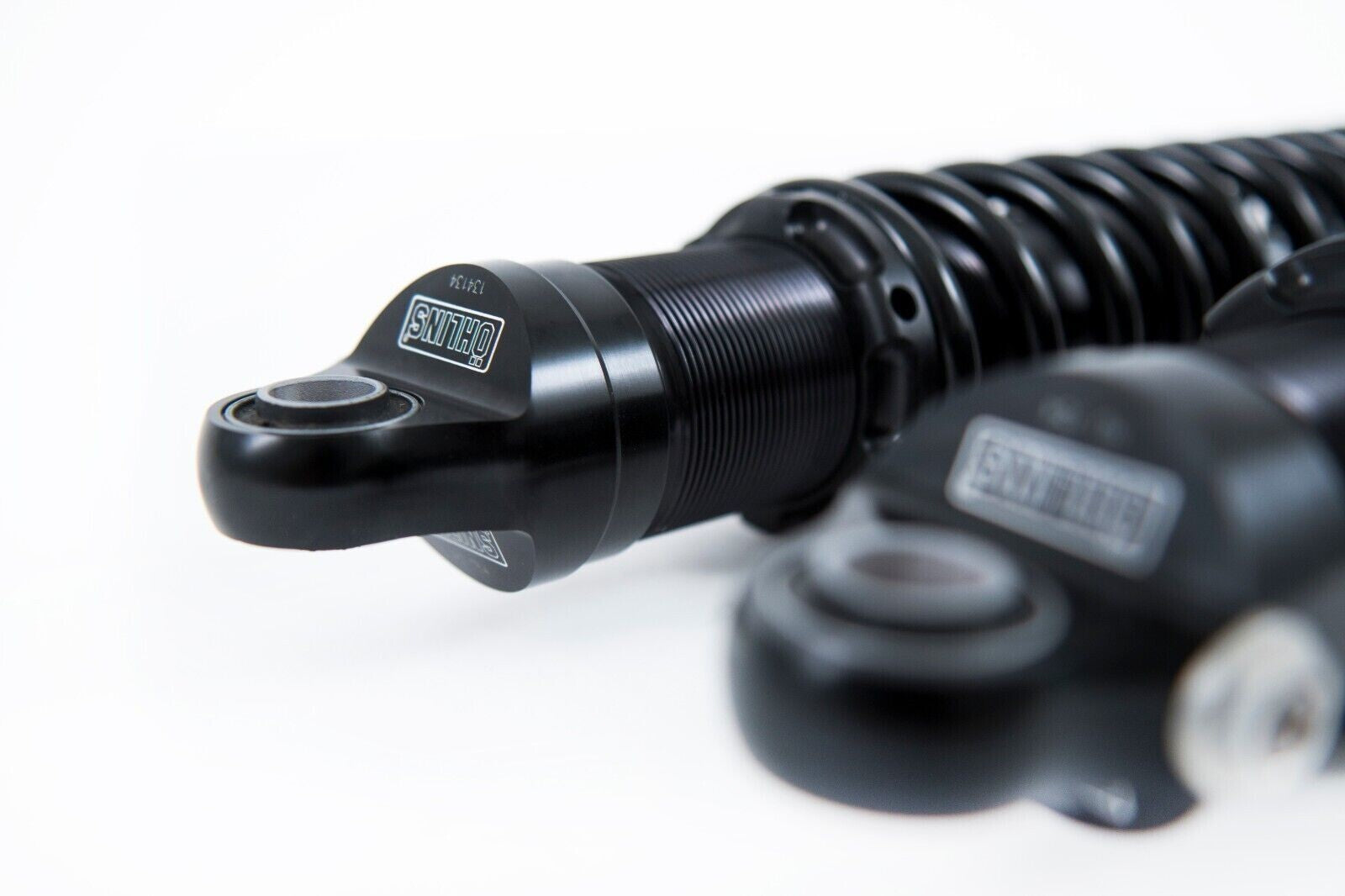

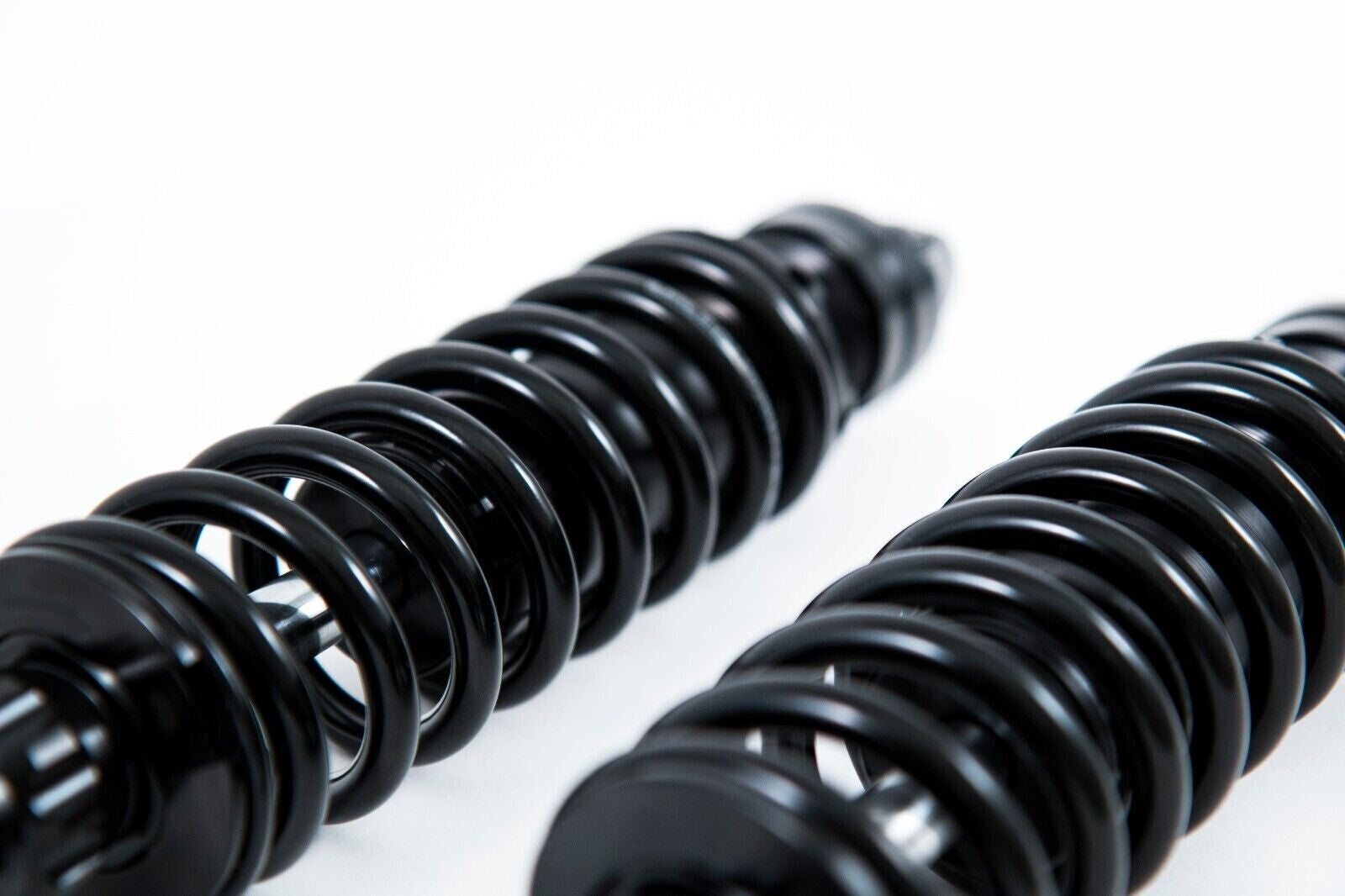

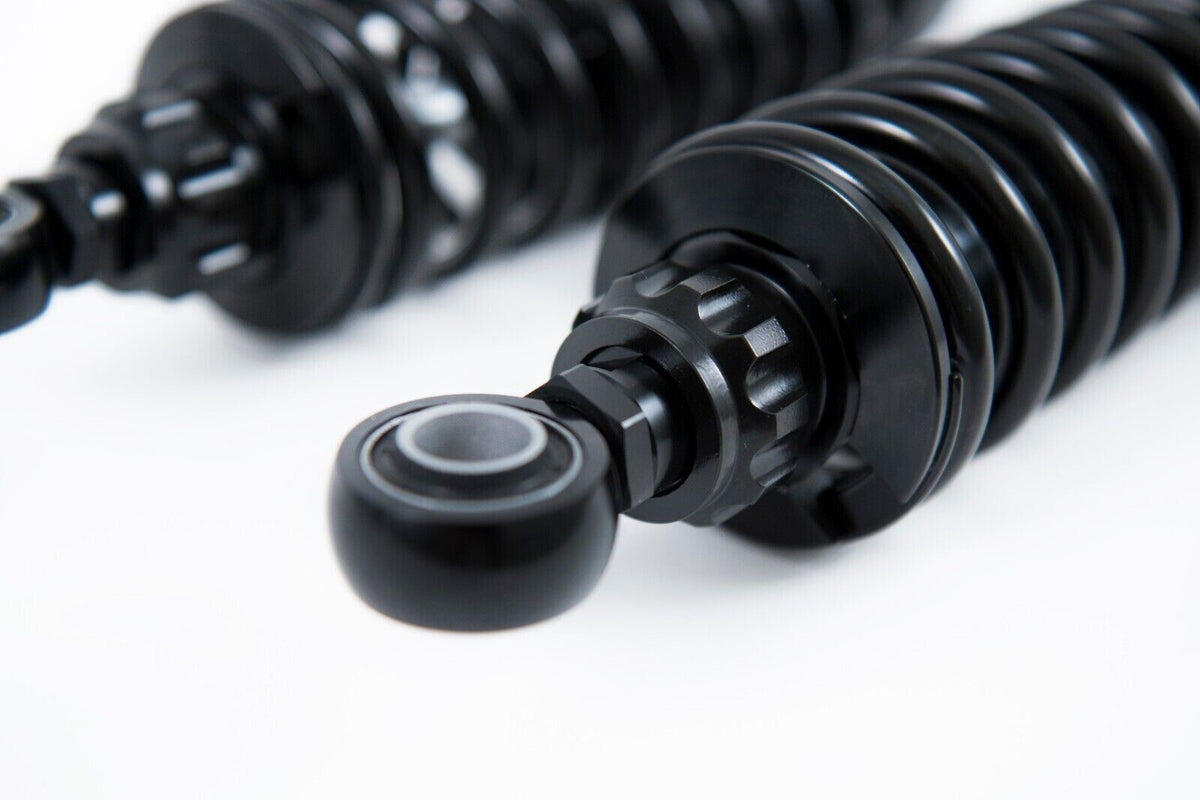

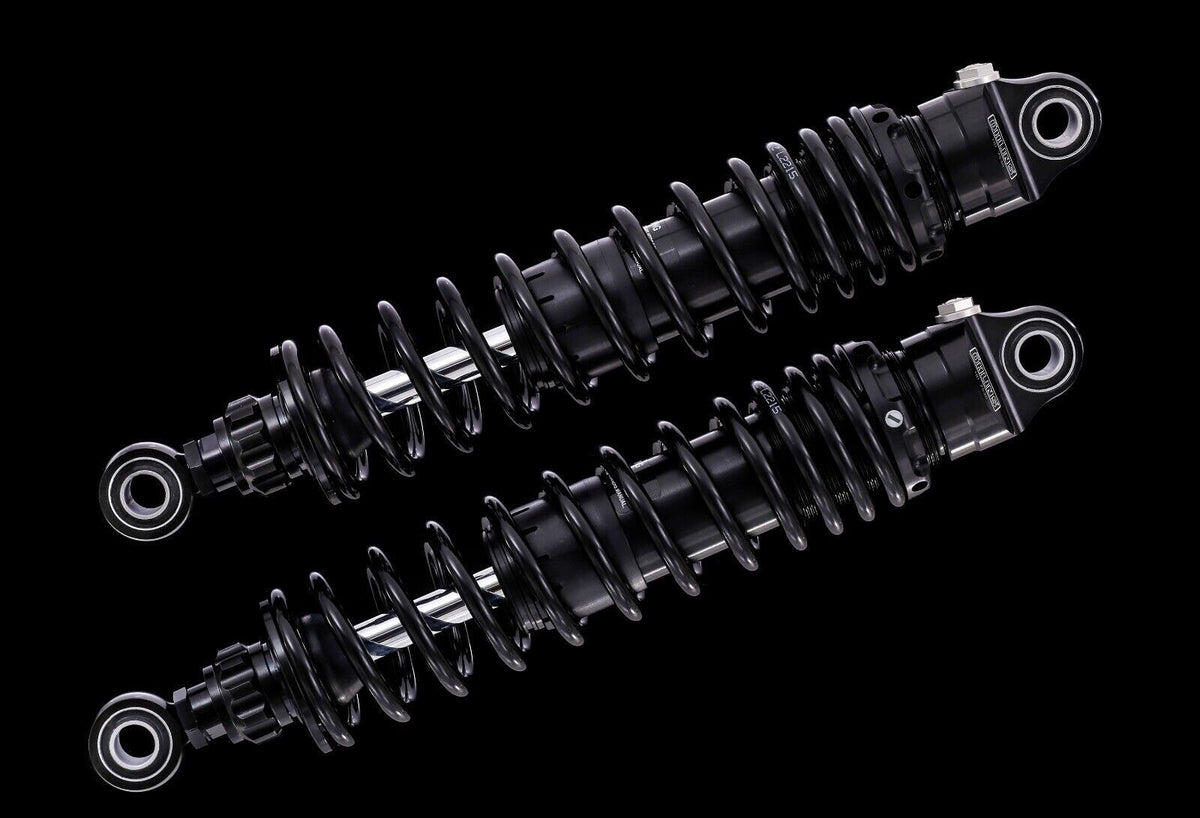

Ohlins HD 772 Rear Shocks 13" Black STX36 150-500lb Harley Touring 90-24 - HD772
$1,153.90
Ohlins Part # HD772 - This is spring 'S1' for rider weight 150-500lbs.
13 inchs (329 +/-5mm)

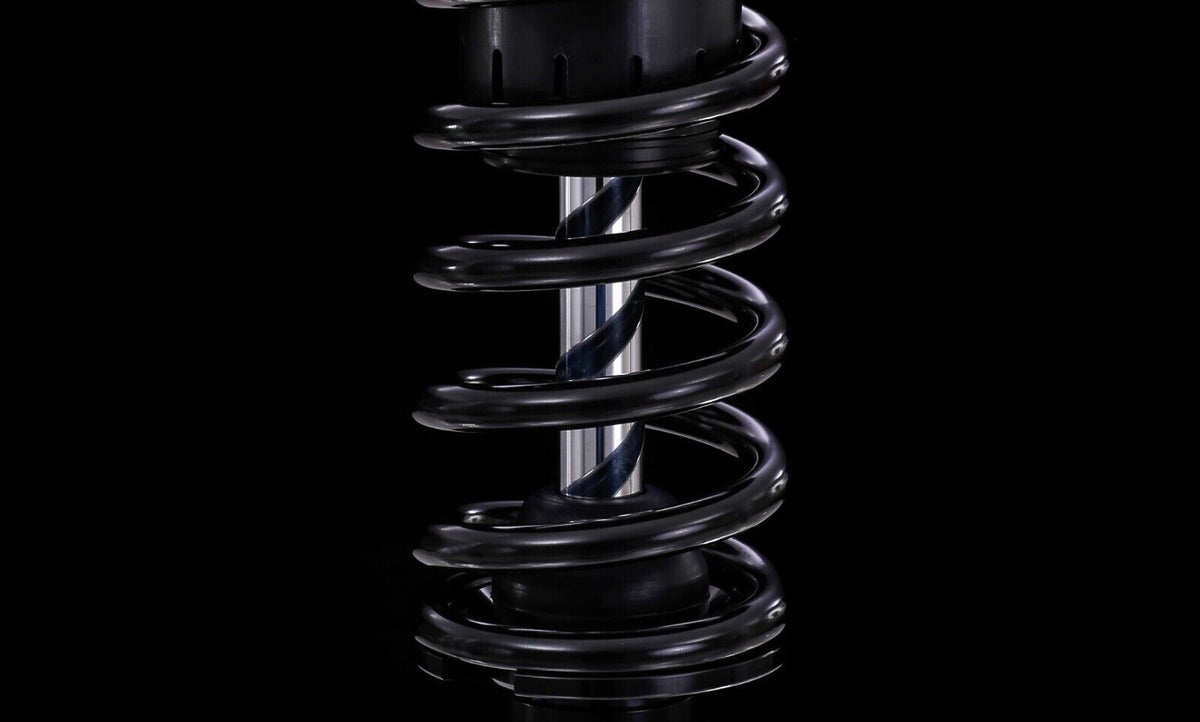

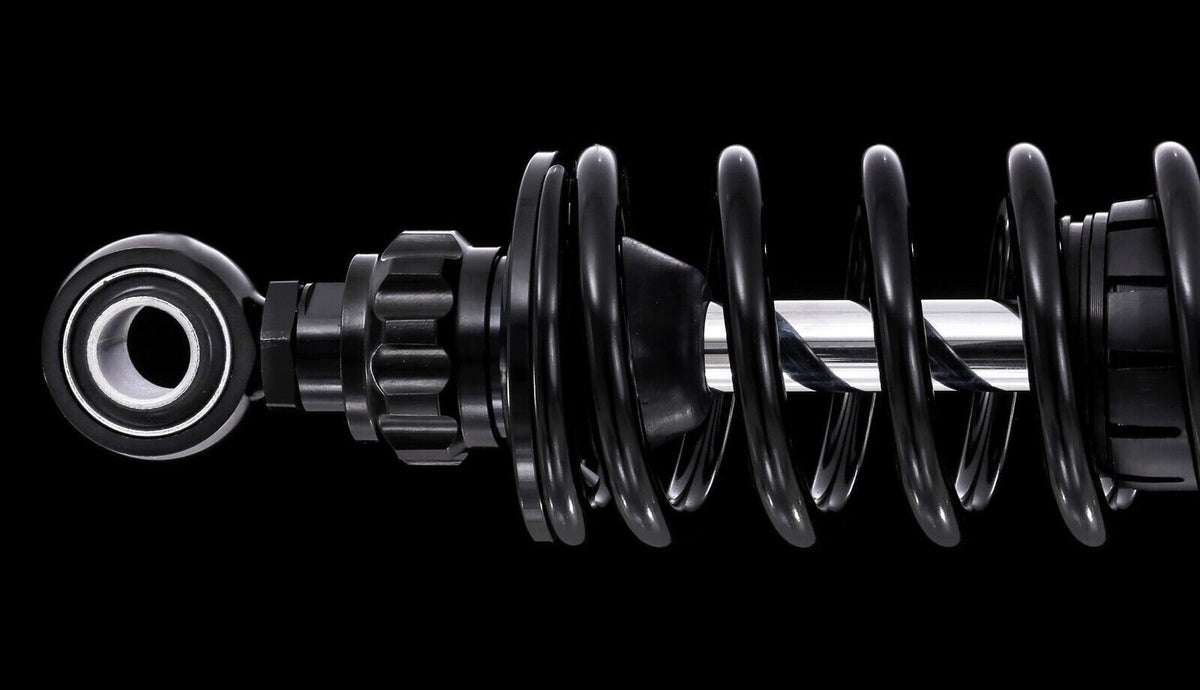

The Öhlins STX36 Blackline is a classic monotube design, featuring quality that delivers the performance you need for your FL. The STX36 line of suspension is one of the most successful designs of all time. This divided piston type shock features rebound adjustment, length adjustment and easy-to-use pin tool preload adjustment with multiple spring rate options to fine tune your ride.
|
| Product Type | Shock Absorber |
| Product Family | STX 36 BLACKLINE |
| Product Code | HD 772 |
| Type Code | S36DR1L |
| Length | 329mm (+5/-5mm) / 12.9" (+0.2-0.2") mm |
| Stroke | 77 mm |
| Rate N/MM | 26 |
| Fitted Spring | 66420-026 (B) |
| Standard Estensione | 20 (clicks) |
| Arrow direction - Compression | R |
| Arrow direction - Estensione | L |
| Mounting Position | REAR TWIN |
| Recommended Ohlins Oil | 01309 |
| Notes * | (ROAD KING, STREET GLIDE, ELECTRA GLIDE ETC 1990-2024) |
