KFI 66" Steel Snow Plow Kit ALL John Deere GATOR XUV 615 625 815 825 855 S4
$859.00
Skip to product information
KFI 66" Steel Snow Plow Kit ALL John Deere GATOR XUV 615 625 815 825 855 S4
$859.00

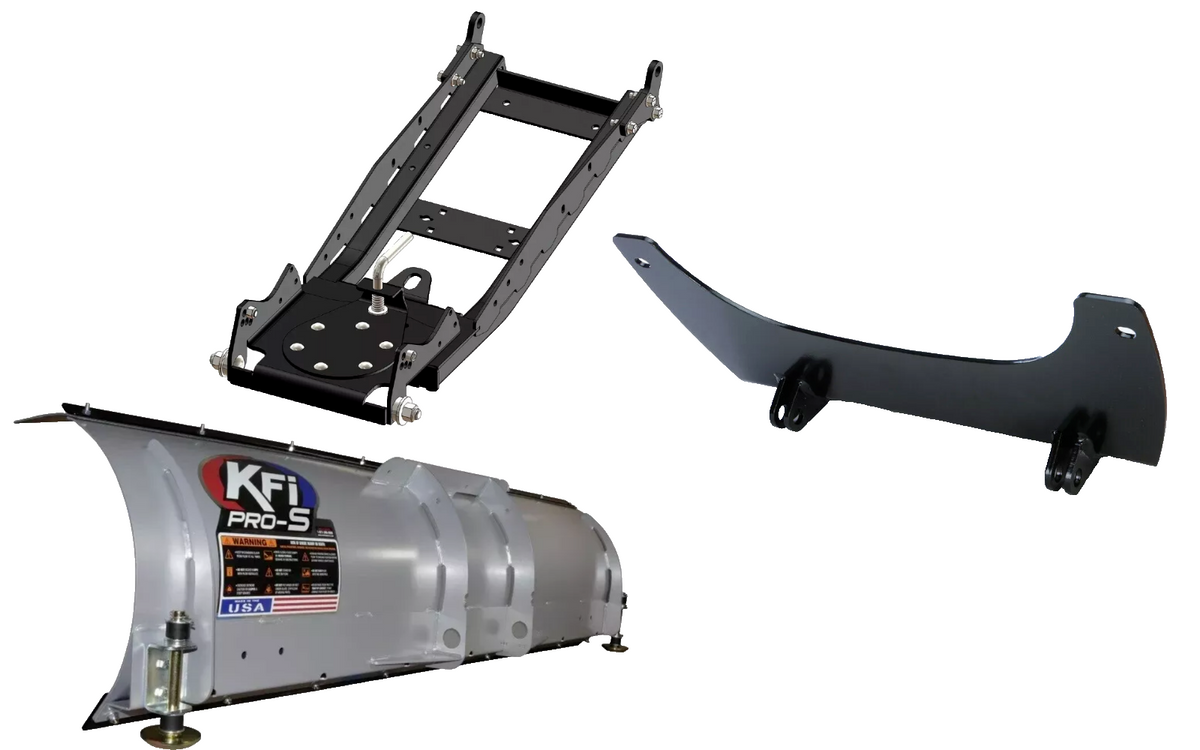

Plow kit includes 66" Blade, Push Tubes, & KFI Mount #105395. All instructions and all hardware needed for installation is included.
| 2018-2021 | John Deere | Gator HPX815E 4x4 | - | - |
| 2018-2021 | John Deere | Gator HPX615E 4x4 | - | - |
| 2018-2021 | John Deere | Gator XUV825M S4 4x4 | - | - |
| 2018-2021 | John Deere | Gator XUV855M S4 4x4 | - | - |
| 2018-2020 | John Deere | Gator XUV825E 4x4 | - | - |
| 2018-2020 | John Deere | Gator XUV825M 4x4 | - | - |
| 2018-2020 | John Deere | Gator XUV855E 4x4 | - | - |
| 2018-2020 | John Deere | Gator XUV855M 4x4 | - | - |
| 2010-2020 | John Deere | XUV Gator 825 S4 | - | - |
| 2007-2019 | John Deere | XUV Gator 855 D | - | - |
| 2007-2016 | John Deere | XUV Gator 625 | - | - |
| 2004-2020 | John Deere | XUV Gator 825 | - | - |

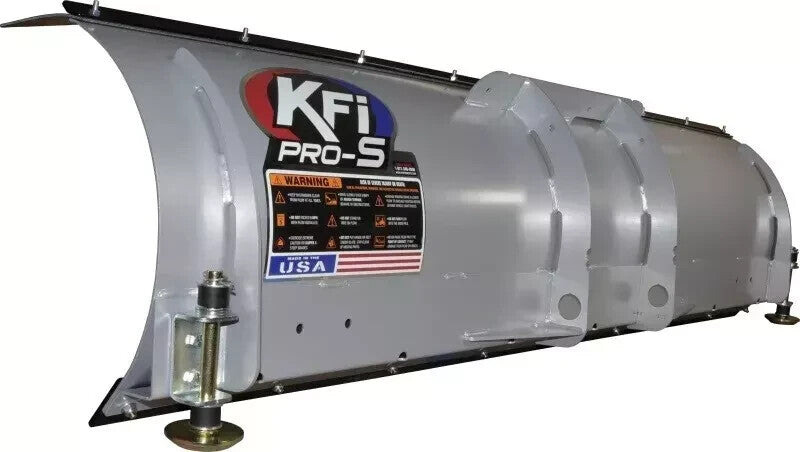

66" Straight Blade Specifications:
- 100% MADE IN USA
- Pushes snow straight ahead or to the sides up to 25 degrees
- Added gussets for the wider width
- The 66" & 72" blades include a 7" high 2-ply top rubber flap
- Measures 16” Vertical blade face height with an approximate 21” height with snow flap
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Blade Constructed of 11 gauge steel
- 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
- Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- 2-Year KFI Warranty

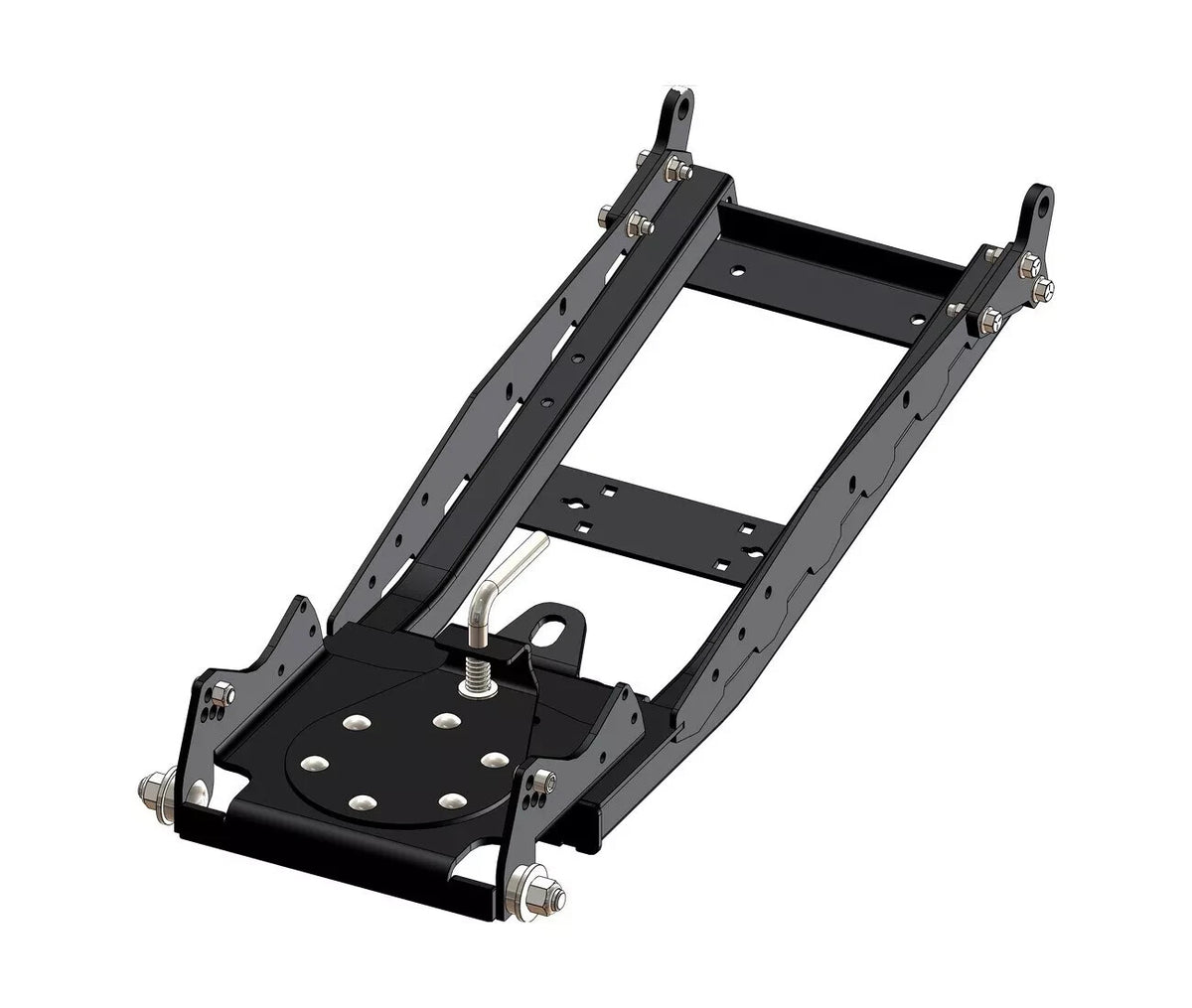

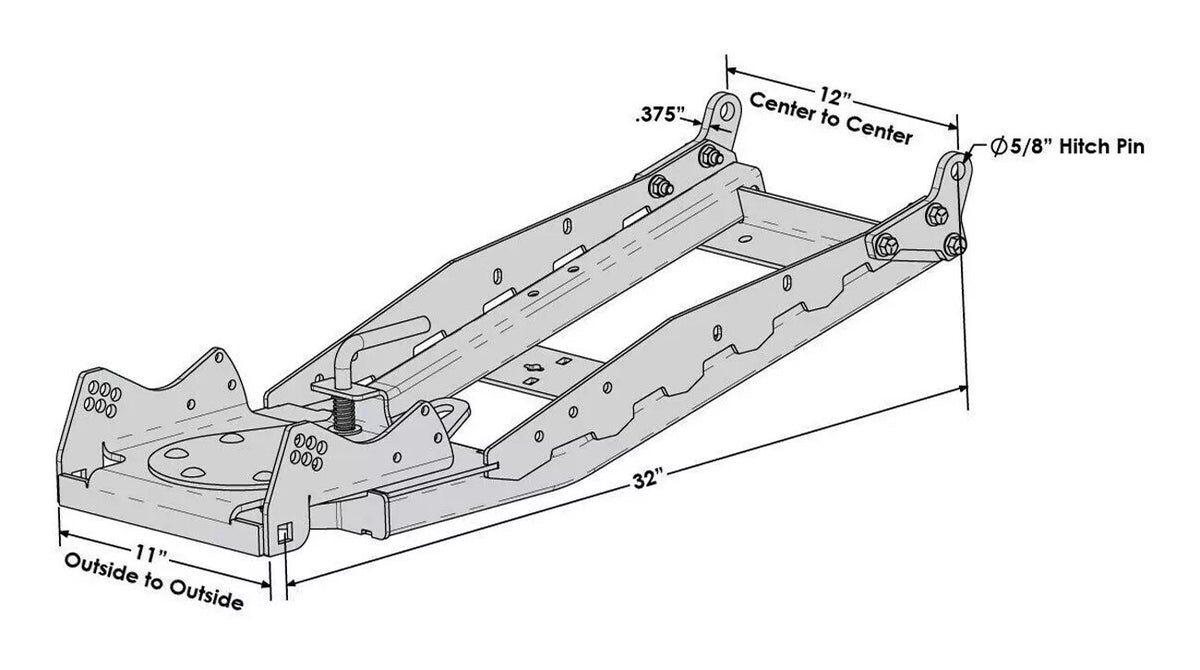

KFI 2.0 UTV Push Tubes

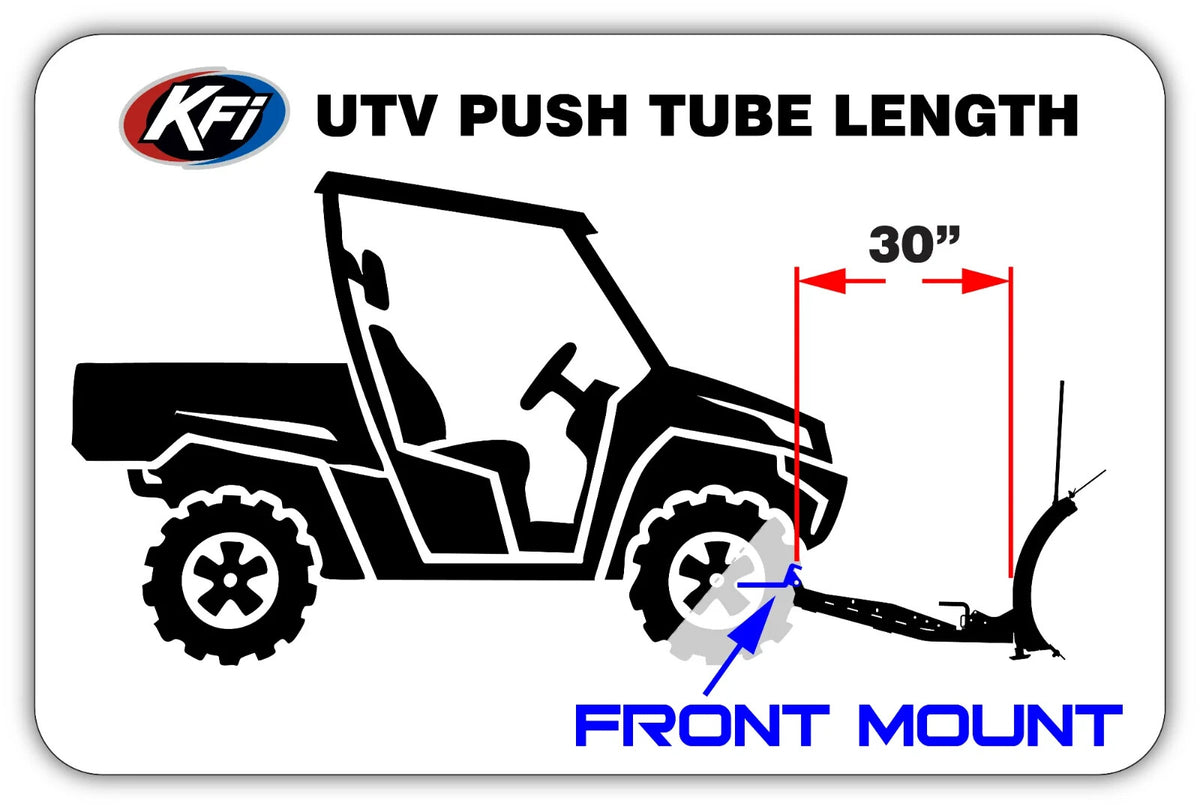

Front Mount Design with 30"+ of lift height
- 100% MADE IN USA
- 2" Longer Than Previous Push Tube #105635
- Heavy Duty 1-1/2" 12 Gage Square Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter POM Injection Molded Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- 2-Year KFI Warranty

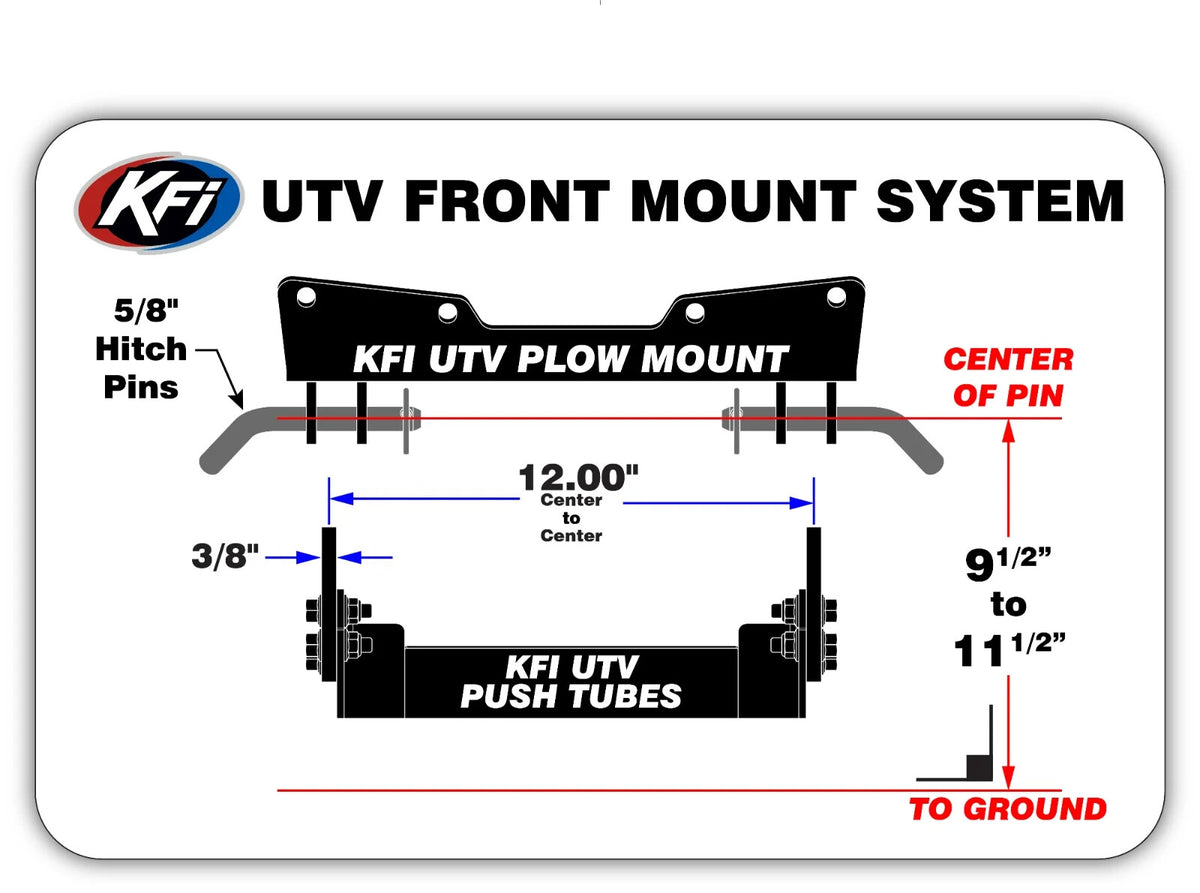

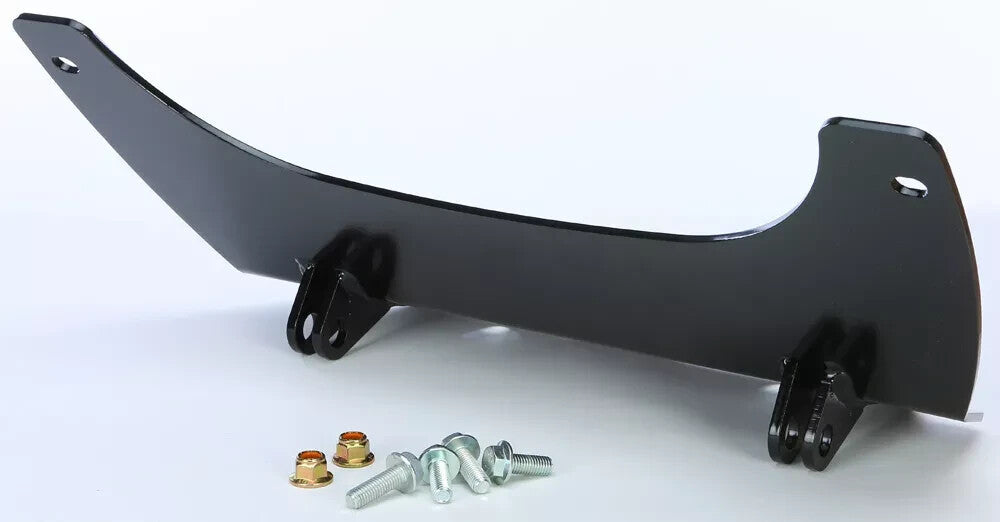

KFI UTV Front Plow Mount
- 100% MADE IN USA.
- Constructed of 3/16" steel.
- Unlike all other competitors, our products are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Complete installation instructions included.
- All mounting hardware included.
- Satisfaction guaranteed.
